Soft, but with pressure

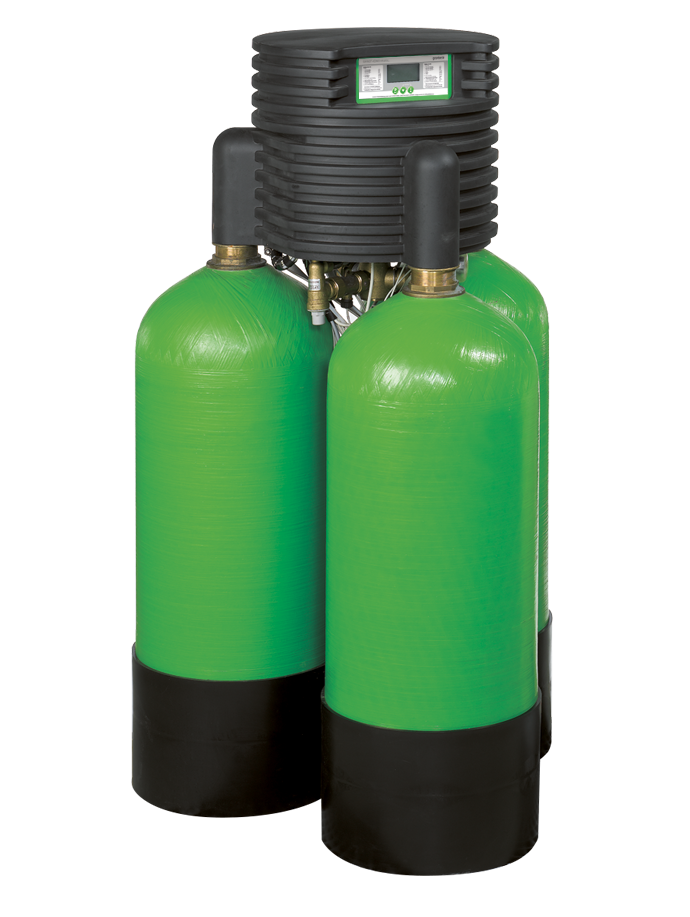

The Grünbeck Delta-p water softener

Unique triple water softener Delta-p

The Delta-p triple water softener supplies soft water in the most convenient manner. Thanks to the patented three-way ball valve, the available water pressure is maintained at the highest level possible.

The Delta-p triple water softener permanently supplies soft water across all industries. It works with an ion exchange process and sets new standards with its low pressure loss and extremely economical consumption of operating materials. This is achieved, among other things, by a patented control valve. The electronically controlled blending sets the desired residual hardness. The Delta-p is available in the sizes 1", 1¼", 1½" and 2", each in a drinking water or industrial version. In addition to the standard salt tanks with a maximum regeneration salt capacity of 75 or 200 kg, larger salt tanks are also available. The connection to the drinking water system is convenient, all connection hoses have an approval according to KTW category A and W 270.



Contact us for a quote

Advantages

  • Permanent soft water supply, no interruption of operation for salt regeneration
  • Minimum pressure loss <0.5 or <0.8 bar
  • Simple installation - plug-and-play mounting
  • Economical resource consumption
  • Particularly low operating costs
  • Precise electronically controlled blending
  • Fresh water guarantee
  • Patented control valve
  • DVGW-certified



Technical specifications

Delta-p/-I
1" ¼" 1½" 2"
Nominal connection diameter [DN] 25 32 40 50
Nominal flow [m³ / h] 3 5 8 12
Nominal flow blended water [m³ / h] 5 8.3 13.3 20.0
Pressure loss at nominal flow [bar] 0.5 0.8 0.7 0.8
Capacity per kg of regeneration salt [mol / kg] 5.7 5.7 5.7 5.7
Regeneration salt supply [kg] 65 65 180 180
Salt consumption per regeneration, approx. [kg] 1.5 2.5 5.2 7.2
Order no. Delta-p 185100 185110 185120 185130
Order no. Delta-p-I 185200 185210 185220 185230
